ATEM POWER 20A MPPT Solar Charge Controller Regulator 12V/24V Lithium Compatible
ATEM POWER 20A MPPT Solar Charge Controller Regulator 12V/24V Lithium Compatible
The accessories at OZI4x4 Accessories are designed and manufactured to ensure a perfect fit and optimal performance, every single time.
Included:
- 1 x ATEM POWER 20A MPPT Controller
- 1 x User Manual
Features:
- Lithium Battery Activation: Revitalize your sleeping lithium battery with a simple switch to "lithium mode," connecting it to the solar panel for a magical revival.
- Highly Efficient: Experience unparalleled efficiency as our MPPT solar regulator extracts 98% of power from your panel, surpassing PWM methods by 23%.
- Accurate Tracking: Achieve optimal power point charging, even in cloudy conditions, with remarkable 99% tracking efficiency from our MPPT solar controller.
- Automatic Voltage Detection: Our MPPT solar charge controller identifies your system's voltage upon connection, supporting both 12V and 24V systems with ease.
- Intelligent Protection: It prioritizes safety with complete protection against reverse polarity, overcurrent, over-temperature, undervoltage, overvoltage, and short circuits.
- Genuine 3-Stage Charging: Our MPPT solar controller maximizes energy flow through boost, absorption, and float stages, ensuring the most efficient performance.
- Easy Setup & Quick Charging: Our MPPT solar regulator simplifies setup with screw terminals and enables quick charging through type A and type C outlets.

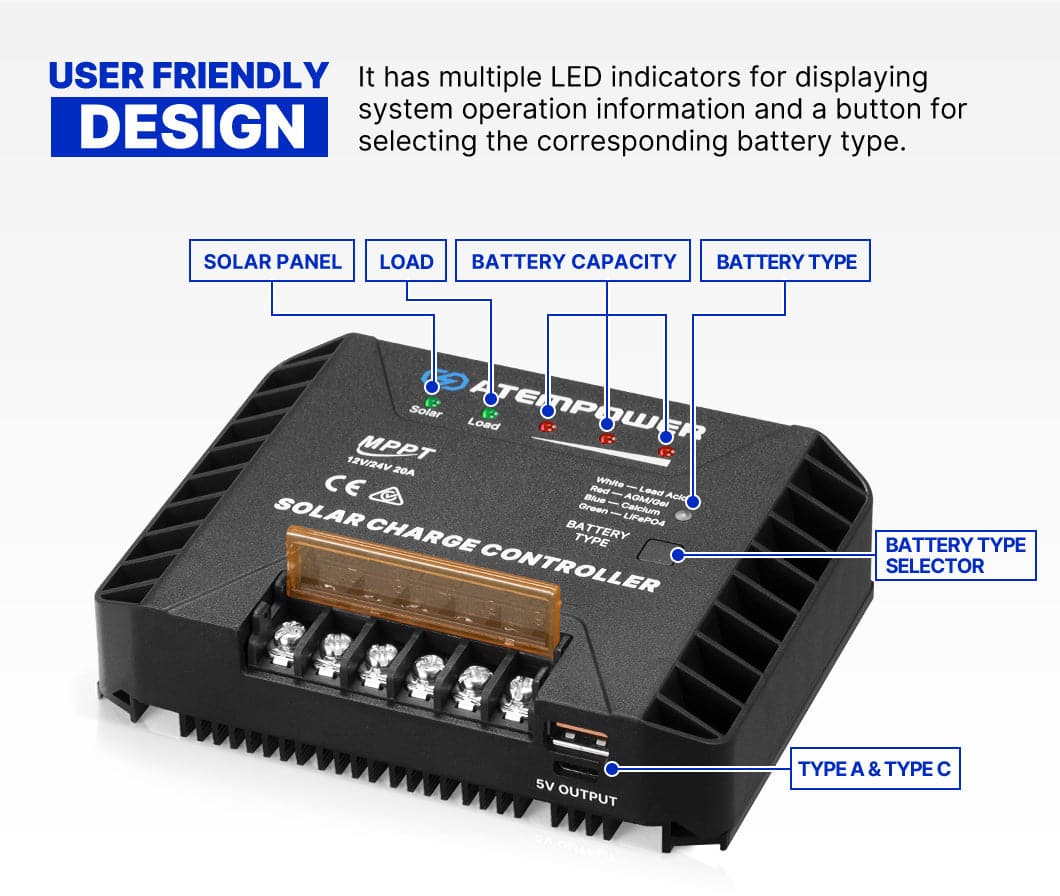

- User-Friendly Interface: Stay informed with multiple LED indicators displaying vital system information and a convenient button for selecting your battery type.
- Multi Chemistry: Embrace compatibility with a range of batteries, including 12V or 24V lead acid, AGM, Gel, calcium, and LiFePO4.

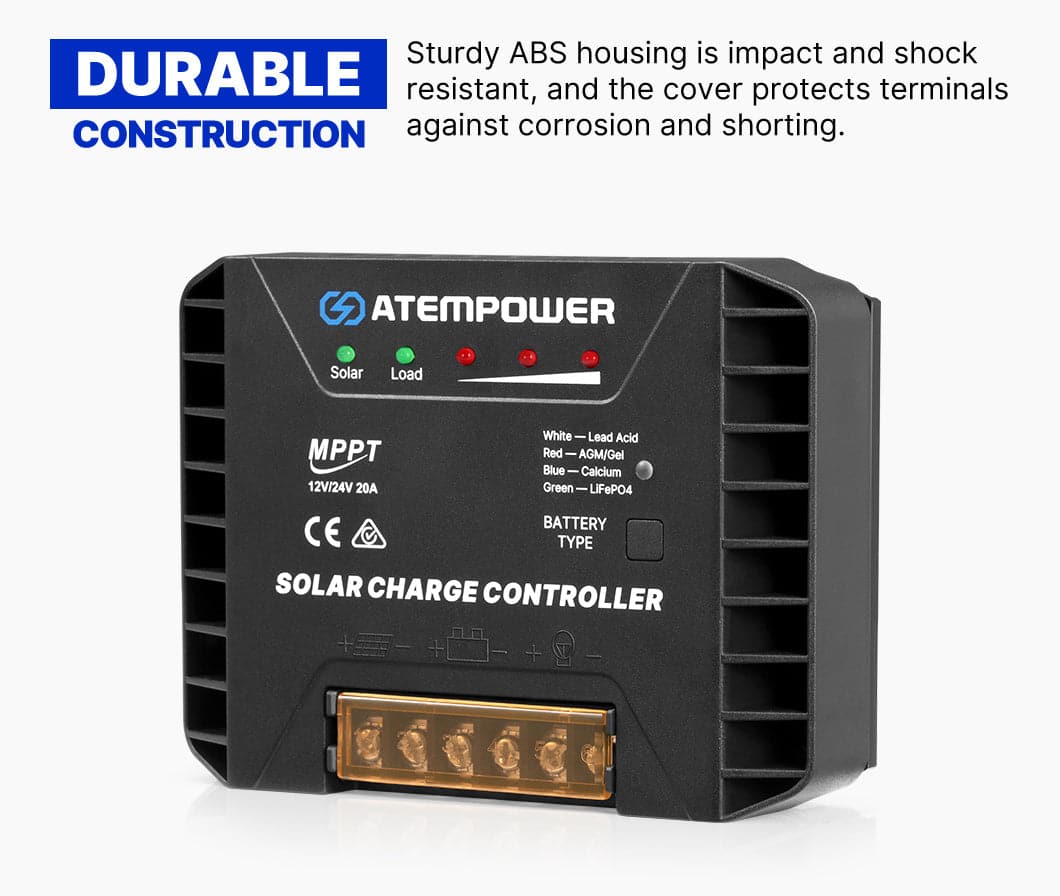

- Built TOUGH: The strengthened ABS housing offers impact & shock resistance, while the aluminum alloy chassis with integrated heat sinks ensures efficient cooling.
Specifications:
| Battery Voltage Range: | 12V/24V |
| Max. PV Open Circuit Voltage: | 50V |
| Max. Solar Input Voltage: | 50V |
| Rated Charge Current: | 20A |
| Rated Discharge Current: | 20A |
| Max. PV Input Power: | 500W |
| Discharge Circuit Voltage Drop: | ≤0.3V |
| Self Consumption: | ≤8ma |
| No Load Current: | ＜10ma |
| Tracking Efficiency: | 99% |
| Conversion Efficiency: | ≤ 98% |
| USB Output: | Type A+Type C; 5V/2.4A |
| Operation Temperature: | -20℃~50℃ |
| Storage Temperature: | -30℃~70℃ |
| Relative Humidity: | ≤90% |
| Package Size: | 19x14x5cm |
| Gross Weight: | 0.42kg |
| SKU: | AP-MPPT-20A-LFP |
